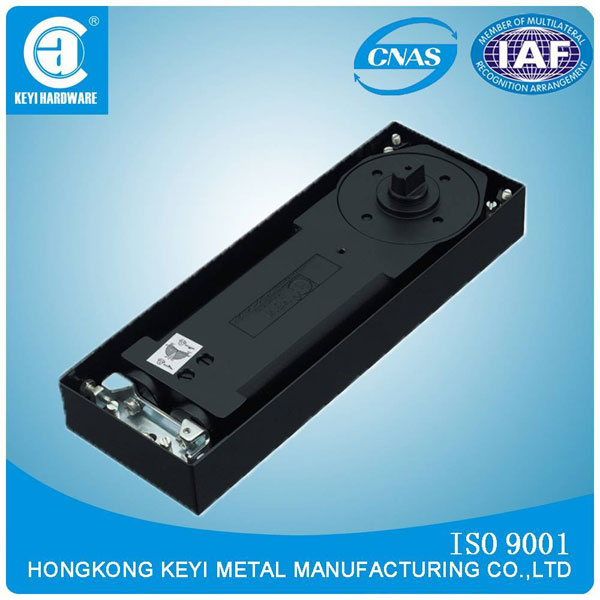

Hydraulic Floor Spring for Glass Door V-84

  • Model: V-84
  • Minimum: 500
  • Payment: L/C, T/T, D/P, etc.
  • Origin: Guangdong, China
  • Brand: KEYI

PRODUCT Description

Function of Floor Spring

1. Can be automatically closed under the action of external force.

2. Closing speed can be adjusted.

3. Retention function.

4. Having door hinge action (the ground spring is also called the earth hinge).

Hot Product Features

1. Closing speed and latching speed adjustable,latching point accurately at 0&deg.

2. Double ways opening with smoothly movement and noiseless,105°stop-device.

3. Over 500,000cycles tested without any damage.

4. Because of special design, the bearing of the spring hinge had control.

5. The floor spring lighten the strength when opening and closing the door.

6. Applicable for glass doors,wooden doors,steel doors and the glass doors of metal frame and wooden frame.

7. Floor springs are widely used in office buildings, hotels and other comprehensive large buildings, as well as shops, banks and other public places.

About Our Company

1. We have a professional work team.

2. High-quality hardware accessories doors and windows.

3. Advanced production equipment.

4. Pass CE certificate,SGS certificate.

5. 100% product inspection.

Here, you can find the hardware accessories for your needs.

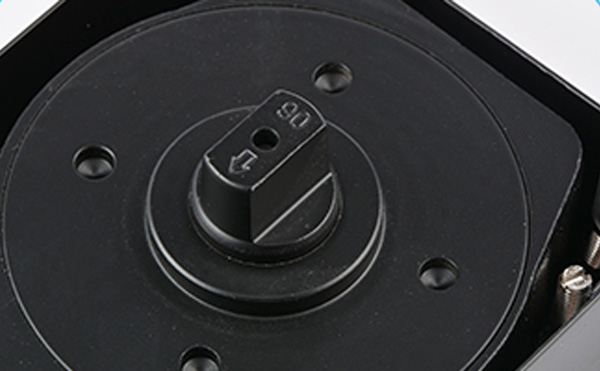

Changeable Head

Different head can be used for Asia, Europe, Middle-East makrets, etc. Satisfied with different demands.

Hydraulic Floor Spring for Glass Door V-84

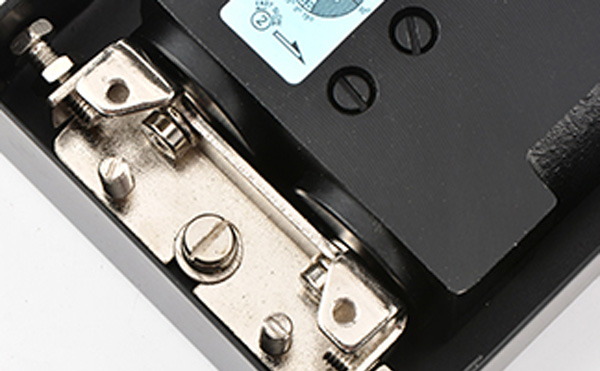

Adjustable Positions

The main body can be moved in 5mm left and right, up and down by loosing and tighting the screws.

Hydraulic Floor Spring for Glass Door V-84

Speed Control

The door's closing speed can be controlled with these screw holes.

Name Hydraulic floor spring
Material Stainless steel
Finish Satin/ polish
Max Open Angle 105 degree
Max door Weight 95KG
Suitable Door Size 880*2200mm
Color silver or can be customized
Plate Material Ss201,Ss304
Caront size 35*30*23.4cm
Function 90° arbitrariness orientation function
Application Hotels, office, home, apartment,etc.
Inspection 500thousand times
Suitable for The left,right door open and single,double
action
